StarTech.com USB4 Docking Station, USB-C 40Gbps, up to Dual 4K 60Hz HDMI, Multi-Monitor Dock, 6-Port USB Hub, 2.5GbE, 100W Power Delivery
Press and move to zoom
Mouse over image to zoom
Click to enlarge

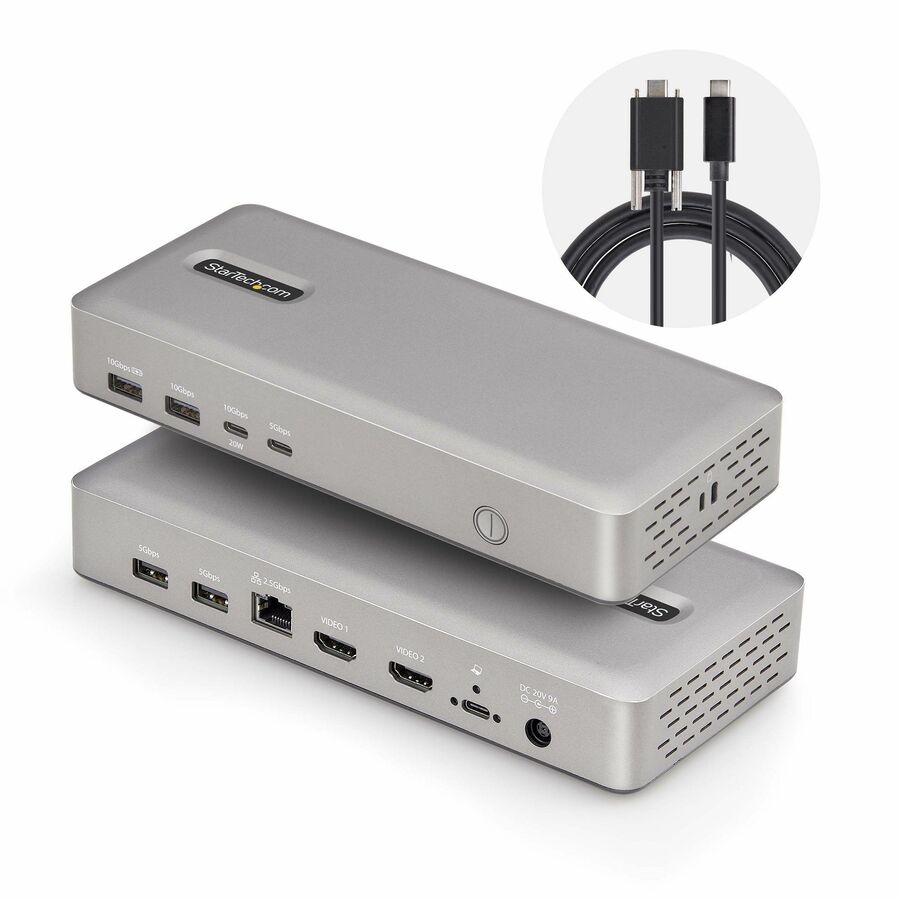

StarTech.com USB4 Docking Station, USB-C 40Gbps, up to Dual 4K 60Hz HDMI, Multi-Monitor Dock, 6-Port USB Hub, 2.5GbE, 100W Power Delivery

USB4 (USB-C 40Gbps) docking station with driverless setup - Dock for USB4 and Thunderbolt laptops - 2x HDMI 2.1 ports support up to dual 4K 60Hz - 100W PD / 6x USB Hub / 2.5Gb Ethernet - Locking 3.3ft USB4 host cable incl with locking USB-C host port

Hamster: 837726
Manufacturer Part No: 155NA-USB4-DOCK

Add to my Purchase List

Online

0 in-stock


Delivery could exceed the displayed time..
This product is shipped separately by the supplier..
  • HIGH-PERFORMANCE USB4 DOCK: USB4 delivers 40Gbps data transfer speeds, and improved bandwidth for video, making this mobile docking station an ideal solution for high-performance computing & seamless device connectivity
  • DUAL 4K 60Hz/120Hz VIDEO: 2x HDMI 2.1 ports support Dual 4K 60Hz or up to Dual 4K 120Hz / Single 8K 60hz at 4:2:2; Delivers direct GPU performance with no software or compression
  • COMPATIBILITY: Dock is Compatible with Windows 11 (x64 and ARM), Windows 10, and ChromeOS; Optimal performance with Thunderbolt 4 and USB4 laptops; Compatible with Intel 12th Gen and later, Intel Core Ultra, AMD, and Snapdragon X Co-Pilot+ PC's
  • DEVICE SECURITY: Secure 3.3ft (1m) USB-C locking cable for host port; Mounting holes available for optional mounting bracket; K-slot & Nano security slots; USB Event Monitoring, Mac Address Pass-Through with included Connectivity Tools software suite
  • PORTS: 6-port USB hub (2x USA-A 10Gbps / 2x USB-A 5Gbps / 1x USB-C 10Gbps / 1x USB-C 5Gbps); 2.5Gb LAN (10/100/1000/2500Mbps, WoL/PXE); 180W power adapter charges laptop (100W PD) & powers all ports; 1x 20W USB-C, 1x 7.5W USB-A for charging USB devices
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
155NA-USB4-DOCK
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
155NA-USB4-DOCK
Marketing Information

This USB4 (USB-C 40Gbps) docking station uses a single USB4 or Thunderbolt port on a host computer to add high-performance connectivity while charging the laptop.

Flexible High-Performance Video

The dock is equipped with 2x HDMI 2.1 video outputs for connecting dual monitors to the host computer. The dock supports can support dual-monitors with support for resolutions up dual 4K 60Hz at 4:4:4 (RGB) or dual 4K 120Hz at 4:2:2. A single display workstation is also supported at resolutions up to 8K 30Hz 4:4:4 (RGB) or 8K 60Hz at 4:2:2.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

The dock features:

  • 2x HDMI ports to connect displays.
  • 6x USB Hub (2x 10Gbps USB Type-A, 2x USB Type-A 5Gbps, 1x USB Type-C 10Gbps, 1x USB-C 5Gbps) to connect USB peripheral devices.
  • 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

100W USB Power Delivery

Includes a 180W power adapter and supports 100W USB power delivery. This enables the dock to charge the laptop, with enough additional power for all downstream ports. The 6-Port USB hub includes a 20W downstream USB-C Power Delivery port and a 7.5W BC 1.2 Downstream Charging Port (DCP) for charging tablets, smartphones or other battery-powered USB devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App

Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:

  • Advanced Windows Layout Utility: To setup and save custom windows layouts.

  • Mac Address Pass-Through Utility: To improve network security.

  • USB Event Monitoring Utility: To track and log connected USB devices

  • Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

Packaged Quantity
1
Product Type
Docking Station
Technical Information
Connectivity Technology
Wired
Charging Capability
Yes
Device Supported
  • Notebook
  • Tablet
  • Smartphone
  • Monitor
Features
Power Delivery Pass-through
Management Features
  • PXE Boot
  • Wake-on-LAN
  • MAC Address Pass-through
Number of Displays Supported
2
Screen Mode Supported
  • 4K
  • 4K @ 120Hz
  • 4K @ 60Hz
  • 8K
  • 8K @ 30Hz
Supported Resolutions
  • 3840 x 2160
  • 7680 x 4320
Maximum Data Transfer Rate
5 GB/s
Security Slot Type
Kensington Security Slot
Network & Communication
Ethernet Technology
2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface
USB4
Total Number of USB Ports
6
Number of USB 3.2 Gen 1 Type-A Ports
1
Number of USB 3.2 Gen 2 Type-A Ports
2
Number of USB Type-A Ports
4
Number of USB Type-C Ports
2
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
1 x USB Type-C 10Gbps, 1x USB-C 5Gbps
Network (RJ-45)
Yes
Number of RJ-45 Ports
1
Number of HDMI Outputs
2
HDMI
Yes
HDMI Version
2.1
Thunderbolt
Yes
USB Power Delivery
100W
Software
Operating System Supported
  • Windows 10
  • Windows 7
  • Windows 8
  • ChromeOS
  • Windows 11 (64-bit)
Power Description
Maximum Power Supply Wattage
180 W
Power Source Type
Power Adapter
Physical Characteristics
Color Family
Gray
Product Color
Space Gray
Form Factor
Desktop
Height
1.30" (33.02 mm)
Width
8.30" (210.82 mm)
Length
3.80" (96.52 mm)
Weight (Approximate)
4.90 oz (138.91 g)
Miscellaneous
Package Contents
  • 155NA-USB4-DOCK
  • 1 x 3 ft [1 m] USB4 Host Cable
  • 1 x Universal Power Adapter (North America)
  • 1 x Quick-Start Guide
Kensington Security Slot
Yes
Compatibility

Compatible Devices:

  • Thunderbolt 4 Notebooks
  • USB4 Notebooks
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty
3 Year
▲
