TPLink
TP-Link TL-SM311LS MiniGBIC Module
Press and move to zoom
Mouse over image to zoom
Click to enlarge

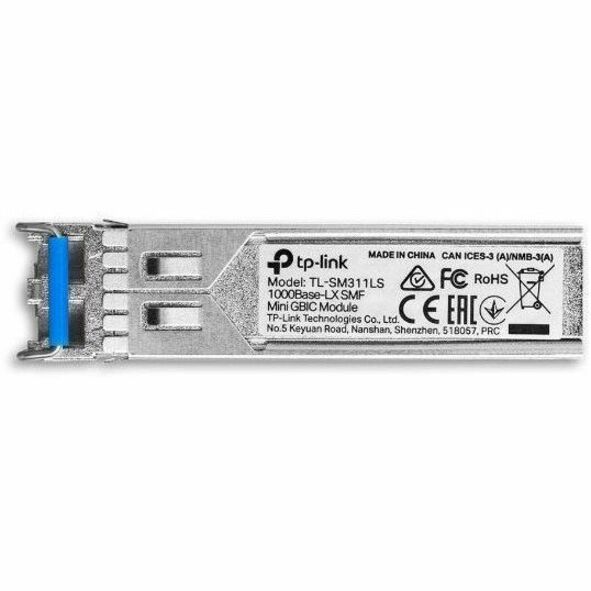

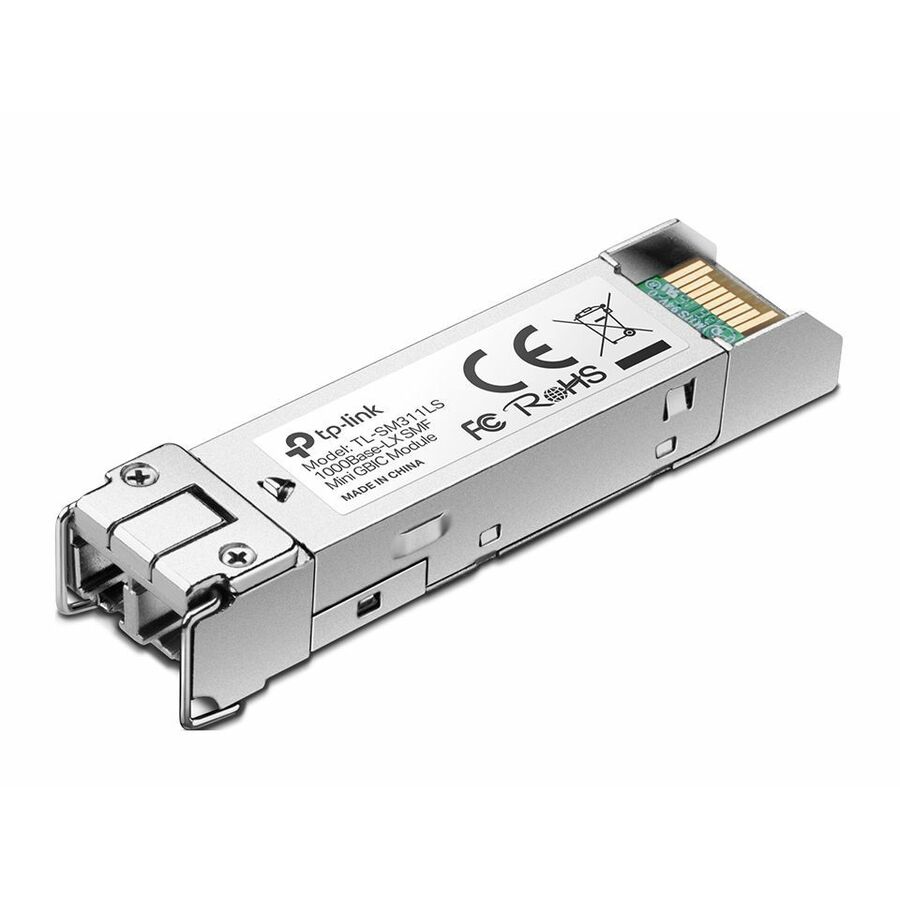

TP-Link TL-SM311LS MiniGBIC Module

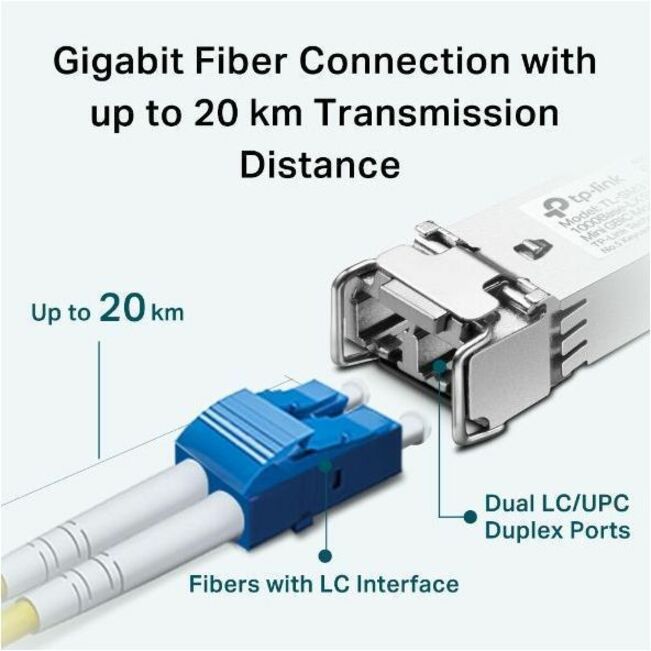

For Data Networking, Optical Network - 1 x LC/UPC Duplex 1000Base-LX Network - Optical Fiber - 9/125 µmSingle-mode - 1.25 Gigabit Ethernet - 1000Base-LX - 1.25 Gbit/s - 20 km (12.43 Mile) Maximum Distance - Hot-swappable - 1 Each

Hamster: 831569
Manufacturer Part No: 4888139

Add to my Purchase List

Online

0 in-stock


This product is shipped separately by the supplier.
Delivery could exceed the displayed time.
  • Single-mode MiniGBIC module
  • Compatible T3700 series, T2700 series,T2600 series, T2500 series, T1700 series, T1600 series, T1500 series, 2/3/5 series switches and MC220L
General Information
Manufacturer
TP-LINK Technologies Co., Ltd
Manufacturer Part Number
4888139
Manufacturer Website Address
http://www.tp-link.com
Brand Name
TP-Link
Product Model
TL-SM311LS
Product Name
TL-SM311LS MiniGBIC Module
Marketing Information

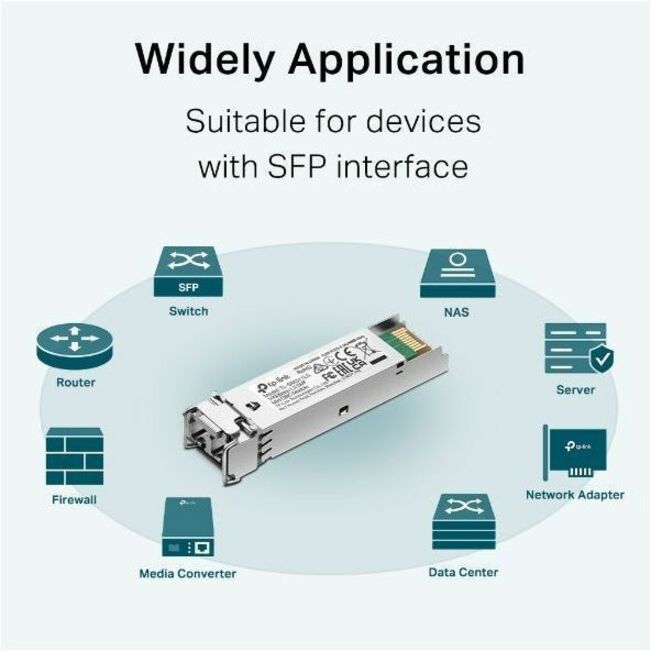

Up to 20 km transmission distance in 9/125 um SMF (Single-Mode Fiber). Compatible with all SFP ports on TP-Link products including JetStream switches, and media converter MC220L. Work with MC210CS with a single-mode fiber connection. Limited lifetime warranty.

Packaged Quantity
1 Each
Product Type
SFP (mini-GBIC)
Technical Information
Application/Usage
  • Data Networking
  • Optical Network
Features
Digital Diagnostics Monitoring Interface (DDMI)
Interfaces/Ports
Total Number of Ports
1
Connector Type
LC/UPC
Interfaces/Ports Details
1 x LC/UPC Duplex 1000Base-LX Network
Media & Performance
Media Type Supported
Optical Fiber
Fiber Optic Cable Core/Cladding Specification
9/125 µm
Fiber Mode Supported
Single-mode
Ethernet Technology
1.25 Gigabit Ethernet
Network Technology
1000Base-LX
Maximum Distance Supported
20 km (12.43 Mile)
Maximum Data Transfer Rate
1.25 Gbit/s
Environmental Conditions
Minimum Operating Temperature
32°F (0°C)
Maximum Operating Temperature
158°F (70°C)
Physical Characteristics
Form Factor
Hot-swappable
Height
0.20" (5.08 mm)
Width
0.20" (5.08 mm)
Length
0.20" (5.08 mm)
Weight (Approximate)
0.16 oz (4.54 g)
Miscellaneous
Package Contents
  • TL-SM311LS MiniGBIC Module
  • Installation Guide
Compatibility
  • MSA Compliant
  • TP-Link MC220L Gigabit Ethernet Media Converter

TP-Link Switches:

  • T3700 series
  • T2700 series
  • T2600 series
  • T2500 series
  • T1700 series
  • T1600 series
  • T1500 series
  • 2/3/5 series
Country of Origin
China
Environmental Compliance
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty
Lifetime
▲
